It is a new terminal level GPON ONT, which is a variety of FTTB \ FTTH \ FTTO access ONT manufactured. It can support pure data, WIFI and many other services accessing type. It supports standard OMCI, which provides up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It supports 802.11ax dual band (2.4Ghz+5Ghz) Wi-Fi technology.

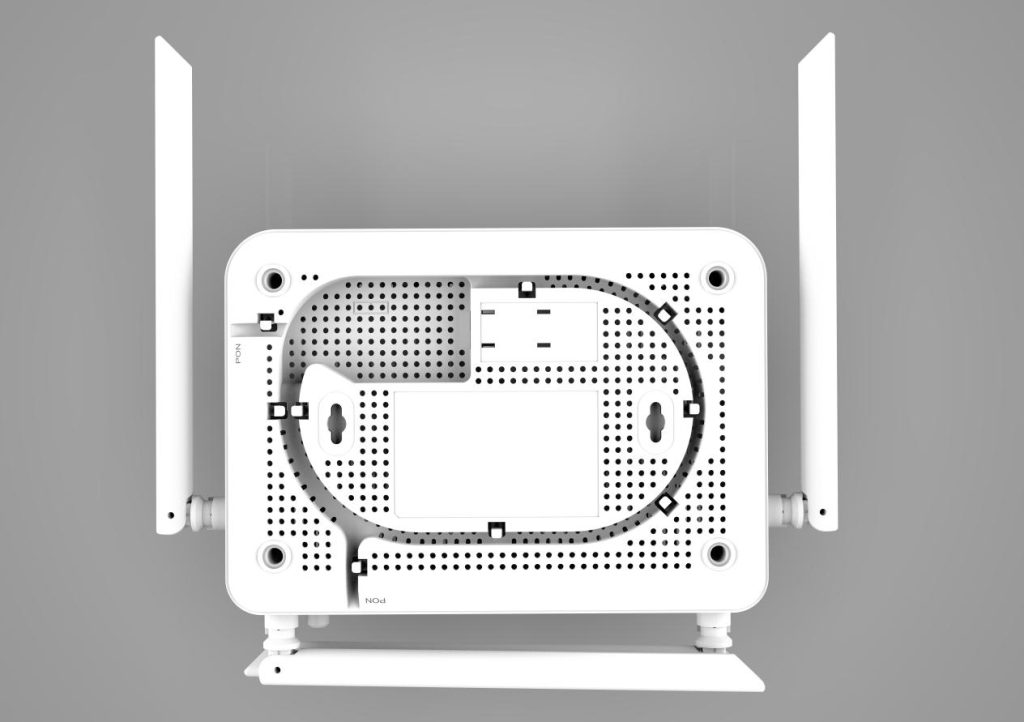

AX3000 GbE GPON HGU

With 5VT SoC and MTK WIFI-6 chipset solution
With 4 GbE LAN and 1 FXS VoIP interface

Features

  • GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link speed;
  • 4x 10/100/1000BASE-T Ethernet RJ45 Ports; (4 GbE Ethernet LAN1/LAN2/LAN3/LAN4)
  • Support 802.11n/ax 2T2R speed up to 574Mbps;
  • Support 802.11ac/ax 2T2R speed up to 2400Mbps;
  • Support VoIP; (1 FXS Ports)

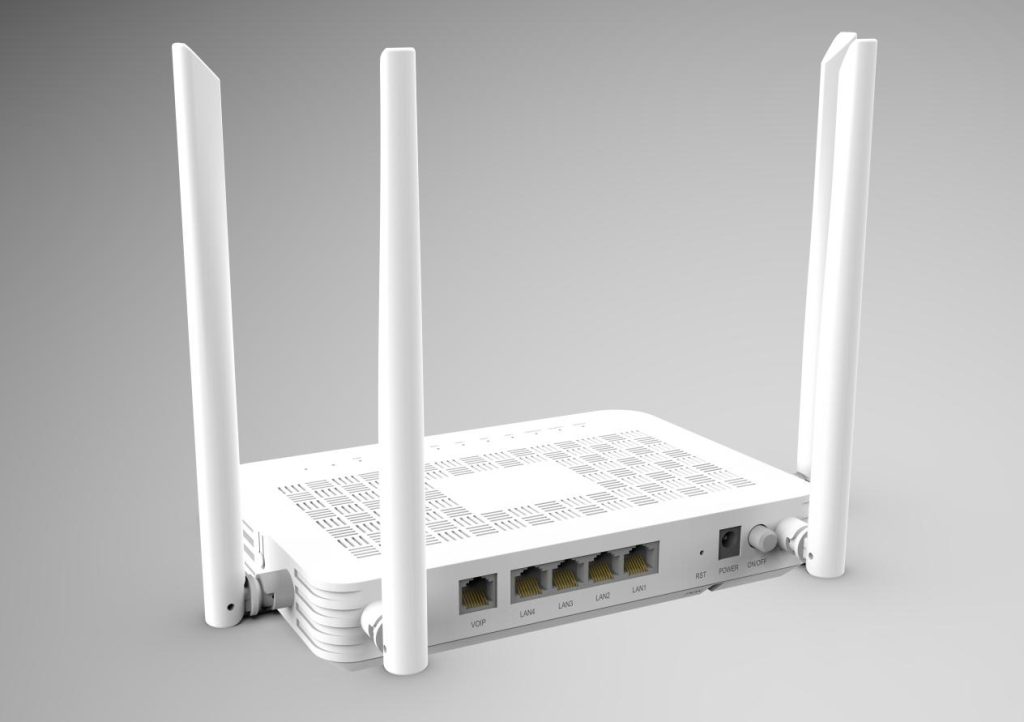

Interface

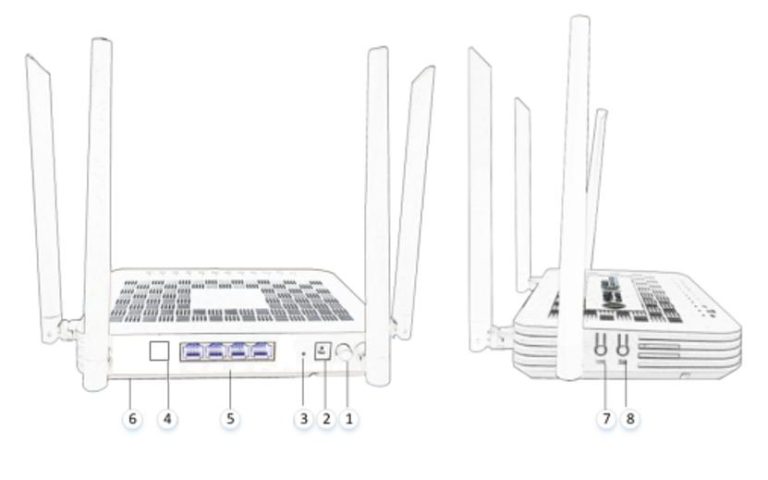

InterfaceDescription
① Power buttonPower button
② Power interfaceIt is used to connect the power adapter, the adapter size is 12V/1.5A.
③ Reset buttonReset button
④ Voice PortVoice Port
⑤ Ethernet LAN1-4 interfaceRJ-45 10/100/1000 Base-T Ethernet interface
⑥ GPON interfaceUpstream GPON interface. Interface type SC/UPC.
⑦ WPS buttonPress once to start WPS pairing.
⑧ Wireless buttonPress once to switch device wireless function.

Specification

Wifi

  • 2.4G: 802.11n/ax with 574Mbps
  • 5G: 802.11ac/ax with 2400Mbps
  • Enable / Disable WLAN function
  • EASYMESH supports
  • MULTI-SSID function supports
  • Work model _ 2.4GHz supports 802.11b/g/n/ax Mixed working mode.
    _ 5GHz supports 802.11a/n/ac/ax Mixed working mode.
  • Support WLAN transmission power adjustable;
  • Support automatic rate regulation;
  • Support Target wake time (TWT);
  • Supports the configuration of Beacon frame sending interval and DTIM interval.
  • Support for DCM and Extended Range;
  • Support multi-antenna beamforming technology;
  • Sharing and roaming:
      • WLAN sharing is supported to provide WLAN coverage for users.
      • The main gateway and sub-gateway devices support 802.11k, 802.11v, 802.11r
        protocols to realize STA roaming between devices.
    • QoS:
      • Support prioritization based data processing and forwarding;
      • Support WLAN interface fairness;
      • Long OFDM symbol sending mechanism is supported.
      • Support Spatial Reuse/BSS Color function;
      • Support discrimination based on BSS Color;
    • Load Balance:
      • Load balancing between the primary gateway and sub-gateway;
      • Load balancing based on the number of access users is supported.
      • Support traffic based load balancing;
      • Support 2.4G/5G intelligent load balancing

GPON Protocol Specification

  • Comply ITU-T G.984 GPON standard:
  • G.984.1
    general characteristics
  • G.984.2
    physical Media Dependent (PMD) layer specifications
  • G.984.3
    transmission convergence layer specifications
  • G.984.4
    ONT management and control interface specification
  • Support DS/US transmission rate to 2.488 Gbps/1.244 Gbps
  • Wavelength: 1490 nm downstream & 1310 nm upstream
  • Comply with class B+ type PMD
  • Physical distance reach to 20 km
  • Support Dynamic Bandwidth Allocation (DBA)
  • GPON Encapsulation Method (GEM) supports Ethernet packet
  • Supports GEM header removal/insertion and data extraction/segmentation (GEM SAR)
  • Configurable AES DS and FEC DS/US
  • Support up to 8 T-CONs each with priority queues (US)

Management

  • Standard OMCI (G.984.4)
  • Web GUI (HTTP/HTTPS)
  • Firmware upgrade via FTP/TFTP/HTTP
  • Telnet, Web, SSH
  • CLI command via telnet/console
  • Configuration backup/restore
  • TR069
  • IPv4 address management
  • IPv6 address management
  • IPv4 / IPv6 Dual-stack
  • DS-lite
  • NAT / NAPT supports
  • ALG supports
  • Port forwarding (Virtual Server) supports
  • DNS Relay supports
  • DNS Clients (for both IPv4 and IPv6 supported)
  • DNS Server (for each WAN connection supported)

Interface

  • WAN: One Giga optical interface (APC or UPC)
  • LAN: 4*10/100/1000 auto MDI/MDI-X RJ-45 ports (LAN4 + LAN3 + LAN2 + LAN1)
  • VoIP:1*RJ-11 port
  • 1 * Power ON/OFF switch
  • 1 * DC Jack (12Vdc 1.5A input)

Network Protocol Specifications

  • 802.3 10/100/1000 Base-T Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • 802.1Q VLAN tagging/un-tagging
  • Support flexible traffic classification
  • Support VLAN staking
  • Support VLAN Intelligent Bridging and Cross Connect mode

Environment Parameter

  • Operation temperature: -15°C ~ 55°C
  • Storage temperature: -40°C ~ 70°C
  • Relative Humidity: 5% ~ 90%RH, no condensation

VOIP

  • G.711A/μ, G.729, and G.722 encoding/decoding
  • T.30/T.38/G.711 fax mode
  • DTMF /Emergency calls (with the SIP protocol)

WAN Networking

  • Static IP WAN connection
  • DHCP client WAN connection
  • PPPoE WAN connection

Security
WPA/WPA2/WPA3, 64/128bit WEP data encryption
Firewall, Dos Protection

Power Supply

  • DC12V 1.5A
  • AC: Input 90 ~ 264V, 47 ~ 67Hz; Adapter output DC: 12Vdc 1.5A

Antennas

  • 2 * 2.4G 5dBi External antennas
  • 2 * 5G 5dBi External antennas

Frequency Band
2.4 GHz frequency band 20/40MHz and 5.8 GHz frequency band 20/40/80/160MHz

LED Indicators
Power, PON/LOS, INTERNET, LAN4-1, 2.4G WLAN, 5G WLAN, WPS,
FXS

Memory
NAND FLASH 2Gbit (256MB) / DDR3 4Gbit（512MB）

CPU
1.0GHz dual-core CPU, 256K L2 cache

WiFi Chip
2.4G&5G: MTK7916AN+MTK7976DN

Bob Driver
GN25L95

Chip model
5VT2518

Buttons
WPS / WLAN / Reset

Product Size
190 X 135 X 33mm (length X width X height)

Certification
CE certificate
