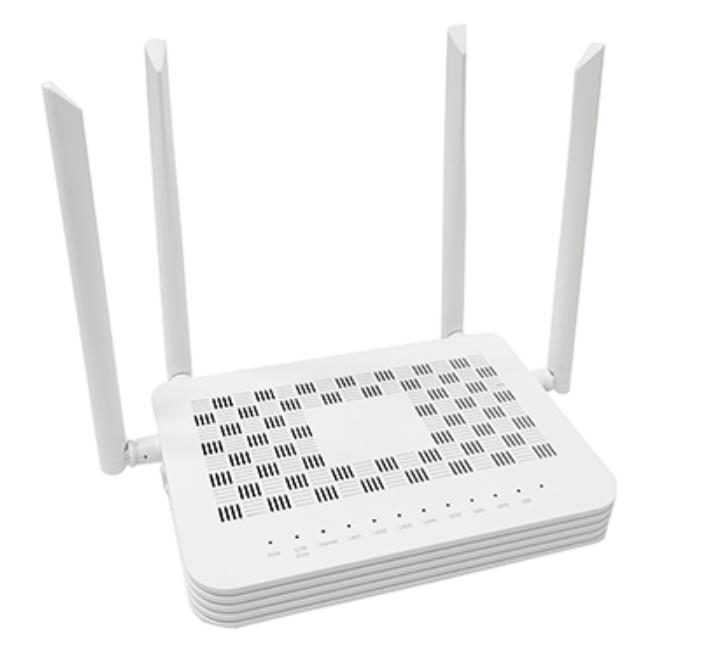

AX3000 WIFI-6 XGSPON ONU
(1*XGSPON, 1*2.5GbE+3*1GbE LAN, 1*FXS VoIP interface)
The GS2020XGS is an XGSPON optical terminal access device that is highly integrated with dual-frequency WiFi-6 (802.11ax 2T2R _ 3000Mbps). It is an end-product of optical fiber for operator, which supports ultra-bandwidth access through XGSPON upstream / downstream technology, and provides users with WIFI functions, routing, VOIP, and gigabit Ethernet functions. The GS2020XGS with XGSPON interface, 1*2.5Gbps+3*1Gbps LAN, 1*USB 3.0 interface (optional), 1*FXS VoIP interface, and AX3000 WiFi-6 WLAN interface.
Product Interface
- 1 * XGSPON interface: SC/UPC or SC/APC interface, XGSPON standard compliance
- 1 * 2.5GbE + 3*1GbE RJ45 Interface, IEEE802.3-2005 standard compliance
- 1 * FXS VoIP interface, in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
- 1 * Standard USB 3.0 interface (Optional)
- 802.11ax Dual-band AX3000 WIFI-6 (2×2 MIMO, 2.4G+5GHz), with EasyMesh function supports
LED status
Uses front LED indicators to check the operation status of GS2020XGS. The front LED indicators will display the status of each interface, definition as below.
| LED | Color | Indicates |
|---|---|---|
| PWR | Green/Solid | Normal |
| OFF | No power | |
| LOS | Red | Optical link is NOT OK (range: out of -8~ -29dBm) |
| Green/Flash | Optical link is OK (range: in -8~ -29dBm) | |
| Green/Solid | Registered successful and active | |
| Internet | Green/Solid | The WAN interface of the internet is configured |
| OFF | The Internet WAN interface is not configured or the Internet WAN interface is configured but does not take activate | |
| LAN1/ LAN2/ LAN3/ LAN4 | Green/Flash | Device connected |
| Active or Link data receive and transfer (Green/flash) | ||
| OFF | device not connected | |
| link downn | ||
| VOIP | Green | Successfully registered to softswitch |
| OFF | Not be registered to softswitch | |
| USB(optional) | Green | Connected and data receive and transfer |
| OFF | No power/error/USB is not connected/USB disable | |
| WIFI | Green/Flash | The terminal is connected to transmit data wirelessly |
| OFF | No power/WIFI disable | |
| WPS | Green | WPS started working |
| OFF | WPS is not working |

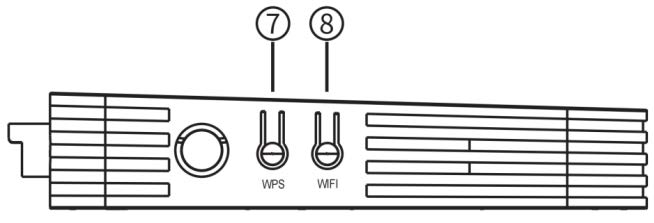

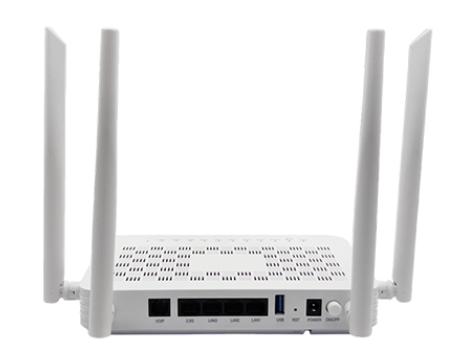

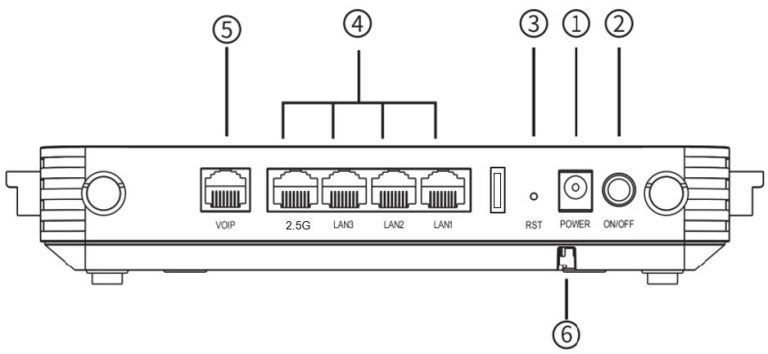

Product Interface
| Interface | Description | |
| 1 | POWER | 12Vdc 1.5A, power input interface |
| 2 | ON/OFF | Power switch button |
| 3 | RST | Reset the ONT |
| 4 | LAN1/LAN2/LAN3 LAN4 | LAN1~LAN3 RJ-45 10/100/1000Mbps Base-T Ethernet port LAN4 RJ-45 10/100/1000/2500Mbps Base-T Ethernet port |
| 5 | VOIP | RJ-11 FXS Interface |
| 6 | PON | XGSPON Interface |
| 7 | WPS | WPS switch button |
| 8 | WIFI | WIFI switch button |
Software Specification
XGSPON / PON Feature
- ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4, TR255/TR156,ITU-T G.987.3, G.988, G.989
- SC/UPC(APC) connector optional
- FEC (Forward Error Correction) in both upstream and downstream
- Dynamic bandwidth status report
- QoS scheduling based on SP or WRR between GEM port and T-CONT
- Downstream multicast GEM port and broadcast GEM port
- Support Triple Churning Encryption algorithm
- Support NSR/SR Dynamic Bandwidth Allocation (DBA)
- Support Forward Error Correction (FEC)
- Support Dying Gasp
- Service processing functions such as traffic management, QoS, multicast, encryption and decryption, service flow classification, bridging, NAT/NAPT, gateway processing are provided;
- Supports L2/L3 multicast and VLAN conversion;
- Supports 16KB jumbo frames
- 15 TCONTs /256GEM ports
- 8 Egress queues per TCONT at least
- VLAN/ priority/VEIP gem mapping mode
- SN/LOID/SN+ Password authentication Performance monitoring: eth/Gem
- Dying gasp
Ethernet Feature
- Ethernet port 10/100/1000M/2500bps auto-negotiation
- Downstream Directions
- L2, IPv4 NAT, IPv6 3/5-Tuplebridge
- Virtual exchange based on TR-156 and CTC
- Ethernet port-based VLAN tags and tag removal
- Support IP TOS/DSCP to 802.1Pmapping
- Support service classification based on UNI, VLAN-ID, 802.1Pbit,TOS/DSCP
- 802.1P labeling and re-labeling
- IGMP v2 / v3snooping
- Broadcast/multicast rate limit
- MAC learning (SVL)/aging
- Support max frame length to1518 bytes VLAN tagging for untagged packets Support VLAN 1-4094
- VLAN transparent/translation
- MAC Learning, 1K MAC address table
- Port Bandwidth Control, IEEE802.3x flow control
- Storm Control: Broadcast/Multicast/unknown unicast, ARP
- Port Isolation, port Mirror, Auto MDI/MDIX
- port Loop detection
- IGMP v2, v3 &IGMP Snooping
WIFI Feature
- WIFI protocol: IEEE 802.11b/g/n/ac/ax
- 2.4GHz band transmit power (including antenna gain) default 100mW, adjustable range 20-100MW, can be adjusted by percentage up to 100mW;
- 5GHz band transmit power (including antenna gain) default 200mW, adjustable range 40-200mW, adjust table by percentage up to200mW;
- Automatic rate regulation;
- Recognize when the STA is in a power saving state, and cache relevant data, wake up the STA with a Beacon frame, and send the cached data;
- Optionally supports configuration of Beacon frame sending interval and DTIM interval;
- Support dual-antenna MIMO (2*2) external 4pcs, antenna gain:5dBi;
- 2.4G11n 2X2 with a transmit power of no more than100mW, and an open are a coverage of more than 100m. The actual access rate at 100m is not less than 10% of the WLAN throughput. and at least 10Mbps if 10% of the throughput is less than10Mbps;
- 5G11ac 2X2 with a transmit power of no more than 200mW, and an open are a coverage of more than 100m. The actual access rate at 100m is not less than 10% of the WLAN throughput. And at least 10Mbps if 10% of the throughput is less than10Mbps;
- WLAN shall be able to penetrate one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete), and the actual access rate shall not be less than 10% of the WLAN throughput. When the throughput is less than 10Mbps, it shall reach at least10Mbps.
- 2.4G 573.5Mbps 5G 2401Mbps
- WLAN access capability: 64 client
- channel: 2.4GHz（channel 1-13）/ 5GHz（channel 36-161 ）
- WPS: WLAN terminal devices with WPS Push Button function establish connection within 2 minutes
- WLAN security function: WPA-PSK、WPA2-PSK、WPA3、WPA-PSK/WPA2-PSK
- AES、AES+TKIP
- Multicast: WMM(Wi-Fi Multi Media)
- Support EasyMesh function, achieve high-speed wireless network coverage throughout the house.
VOIP Feature
- Supports one voice processing;
- Support various prompt tone generation;
- Support encoding and decoding G.711A, G.711U, G.722, G.729,
- SDP protocol (RFC 2327 and RFC 4566) T.30/T.38/G.711 fax mode
- Support the FoIP function;
- Support the Fax/Modem VBD (Voice Band Data) function;
- Functions such as echo suppression, speech activity detection, comfortable background noise, speech frame compensation are supported;
- Support the functions of VoIP statistics and fault diagnosis;
- VoIP codec mode can be configured separately for each POTS route, and codec priority order and packaging interval can be configured;
- Support the functions of detection, generation, transmission and recovery of DTMF;
- Generation of Support FSK with calling number display function;
- Support two-stage dialing and RFC2833 intra-band transmission of DTMF tone;
- Support the Tripartite meeting function;
- Call waiting, In-conditional Call Forward,
- Call Forward if Busy, Call Forward if no reply and Three-party calls.
Getaway Feature
- Support LAN connection
- DHCP
- Static connection
- Network Address Translation (NAT)/Network Address Port Translation(NAPT)
- Port Forwarding
- Static Routing
- Traffic classification and QoS based on the identification of Layers 3 and4
- Access Control List(ACL)
- Firewall
- Application Layer Gateway(ALG),UPnP
- DMZ
- Dynamic Domain Name Service(DDNS)
- Support the NTP protocol
- IGMP agent
L2 Feature
- MAC learning (SVL)/aging
- Support max frame length to 1518 bytes
- VLAN tagging for untagged packets
- Support VLAN 1-4094
L3 Feature
- PPPoE/Static IP/DHCP
- NAT/NAPT
- Port forwarding ALG, UPnP, DDNS
- IPv4/IPv6 dual stack, DS-Lite Static, and Default Routes
- Multiple services on one WAN port
QoS
- Support 8 Queues with Strict Priority
- Ethernet port rate limitation
- 802.1 priority
- SP/WRP
- Service flow classification
Multicast
- IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
- IGMP snooping and IGMP Proxy
- MLD v1
Management
- OMCI/WEB UI/TR069
- Telnet/SSH Management with CLI commands
- Dual-system software backup and rollback
Hardware Specifications
| Hardware Specifications | Description |
| Port | 1*SC/UPC or SC/APC XGSPON interface 1*2.5GbE+3*GbE LAN interface 1*FXS VOIP interface 1*USB3.0 interface (Optional) 802.11ax 2T2R AX3000 WIFI-6 interface |
| LED | POWER, PON/LOS, INTERNET, LAN1~4, VOIP, WiFi, WPS, USB (Optional) |
| Button | POWER On/Off Switch, RESET (RST) button, WIFI On/Off button, WPS button |
| Flash & Memory | Flash: 128MB NAND; Memory: 512MB DDR4-RAM |
| Power Supply | 12Vdc 1.5A |
| Power Consumption | ≤18W |
| Environment Standard | Operating Temperature: -5℃~45℃ Storage Temperature: -20℃~70℃ Relative Humidity: 5%~95% non-condensing |
| Weight | 0.35KG |
| Size | 190mm*135mm*33mm (L*W*H) |
| Module type | Class B+, SC/UPC |
| wavelength | UP 1270nm, Down 1577nm |
| TX Optical power | 4~9dbm |
| RX Optical sensitivity | -28dBm |
| Transmission distance | 0~20km |
| Transmission rate | XGSPON: Upstream 10Gbps/Downstream 10Gbps |
| LAN Interface type | LAN1~3 : RJ45 _ 10/100/1000Mbps LAN4 : RJ45 _ 10/100/1000/25000Mbps |
| VOIP | RJ11 |
| USB | USB3.0 (Optional) |
| WIFI | 802.11ax Dual-band WIFI-6 AX3000 (2×2 MIMO, 2.4G+5GHz) |
802.11ax WiFi-6 AX3000
| Attributes | Description |
|---|---|
| Protocol | 2.4GHz supports 802.11b/g/n/ax 5GHz supports 802.11a/n/ac/ax |
| Transmit Power | 2.4GHz 100mW, 5GHz 200mW |
| Antenna Gain | 5dBi |
| Antenna | Dual-antenna MIMO (2T2R, 2.4G+5GHz) |
| WLAN Penetrate | One reinforced concrete wall or two ordinary brick walls (non-reinforced concrete) |
| WLAN Access Capability | 64 concurrent WLAN clients / SSID |
| Channel | 2.4GHz supports channel# 1–13 5GHz supports channel# 36–161 |
| WPS | WLAN terminal devices with WPS Push-Trigger Button function, to establish WiFi connection within 2 minutes |
| WLAN Security Function | WPA-PSK, WPA2-PSK, WPA3, WPA-PSK/WPA2-PSK, AES, AES+TKIP |
| Air Speed | 573.5 Mbps (2.4GHz), 2401 Mbps (5GHz) |
| Multicast | WMM (Wi-Fi Multi Media) |
